Head to Toe Coverage of Speed & Resolution

To see more images check out our MR Clinical Image Gallery.

CS TOF - Neuro

SMS RESOLVE - Neuro

Deep Resolve Sharp  All Anatomies

CS GRASP VIBE - Body

SMS TSE Body

CS SEMAC - MSK

Deep Resolve Gain - All Anatomies

iPAT - All Anatomies

CS SPACE - MSK

SMS DWI - Neuro

Deep Resolve Swift Brain

CS SPACE - Neuro

WAVE CAIPI SWI - Neuro

CS Cardiac Cine - Cardiac

CAIPIRINHA

CS SPACE - Body

SMS RESOLVE - Body

SMS TSE - MSK

Deep Resolve Boost - All Anatomies

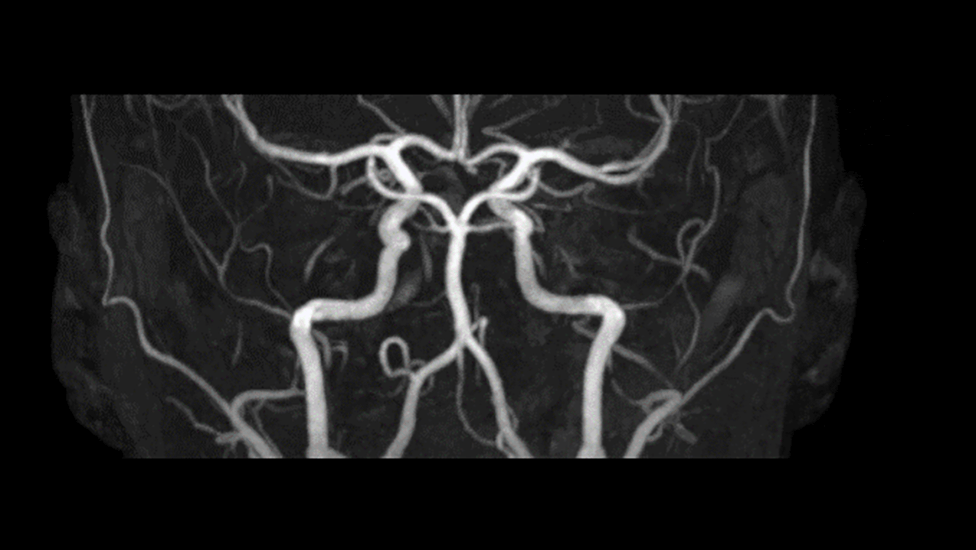

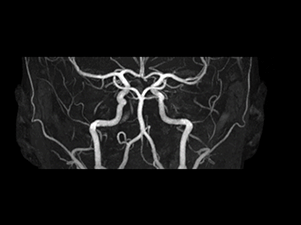

Compressed SENSE Time-of-Flight - Neuro

Highly accelerated MR angiography (MRA) of the brain with a combination of Time-of-Flight (ToF) MR angiography and Compressed Sensing (CS).

Learn more

Coronal Projection
TA: 3:12
7.2 CS factor
0.4 mm slice
576 matrix

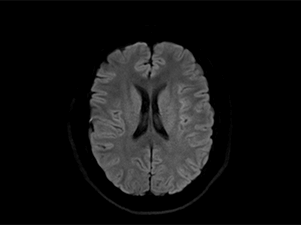

Simultaneous Multi-Slice RESOLVE - Neuro

RESOLVE delivers high-resolution low-distortion diffusion-weighted imaging (DWI) for accurate depic­tion of lesions.



Learn more

Axial
SMS 2
TA: 4:00
4.0 mm slice
384 matrix

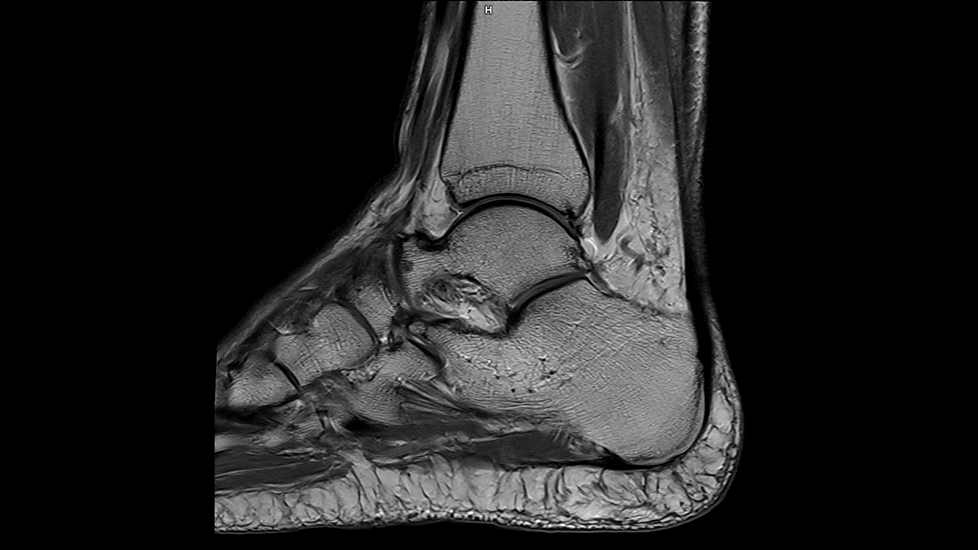

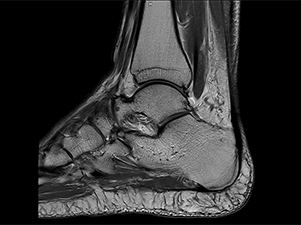

Deep Resolve Sharp  All Anatomies

Deep Resolve Sharp is an AI-powered image reconstruction technology with a deep neural network at its core that generates a high-resolution image from low-resolution input. The inclusion of the acquired raw data in the reconstruction process ensures clinically robust results.

Learn more

Deep Resolve Sharp
Sagittal T1
TA: 2:30
2.5 mm slice
150 mm FOV
1024 matrix

Courtesy of HMCA

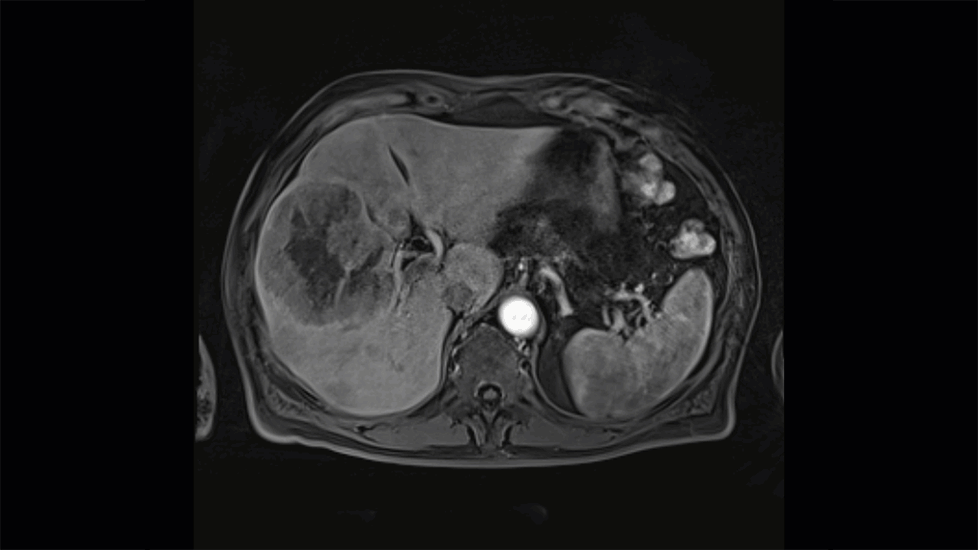

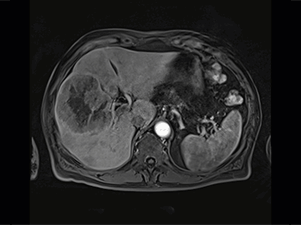

Compressed SENSE GRASP VIBE – Body

Compressed Sensing GRASP-VIBE makes it possible to conduct dynamic contrast-enhanced abdominal exams via free breath­ing. Acquisition is performed in one continuous run and the temporal resolution can be adjusted over the duration of the scan.

Learn more

TA: 0:12 sec
Free Breathing
3.0 mm slices
380 matrix

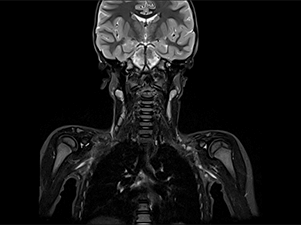

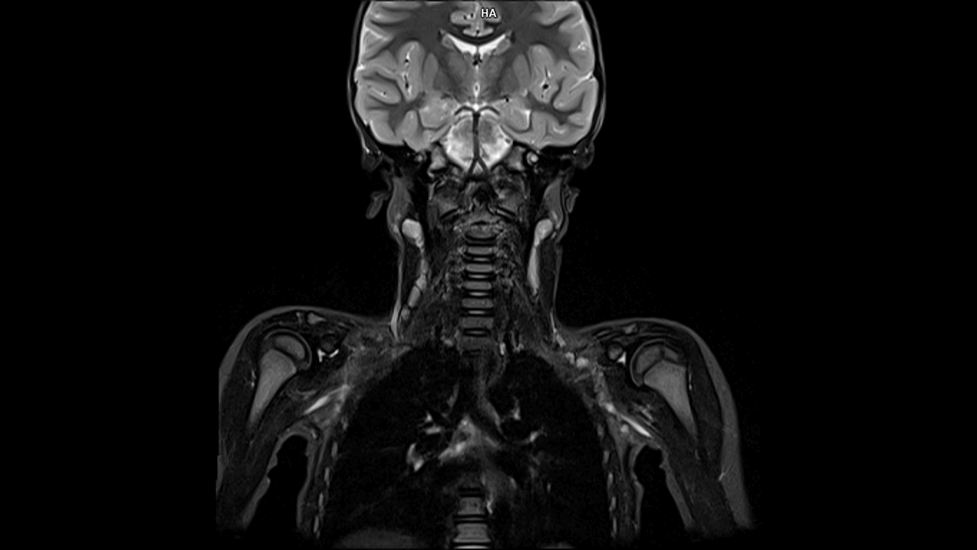

Simultaneous Multi-Slice TSE - Body

Simultaneous Multi-Slice significantly reduces imaging times for DWI, BOLD, TSE and TSE DIXON imaging through excitation and readout of multiple slices simultaneously.

Learn more

Coronal STIR
Pediatric
SMS 2
TA: 3:00
4.0 mm slice
384 matrix
1024 matrix

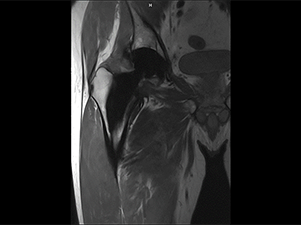

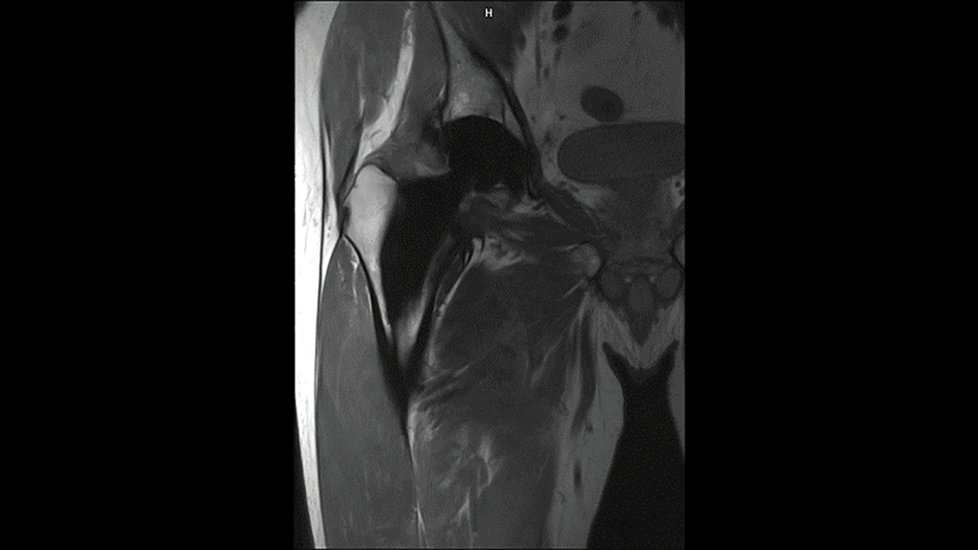

Compressed SENSE SEMAC - MSK

Highly accelerated musculoskeletal imaging in patients with whole joint replacements based on SEMAC (slice encoding for metal artifact correction) with Compressed Sensing and Iterative Reconstruction.

Learn more

Coronal T1
SMS 2
TA: 4:45
3.0 mm slice

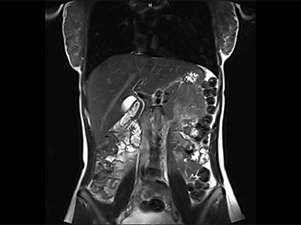

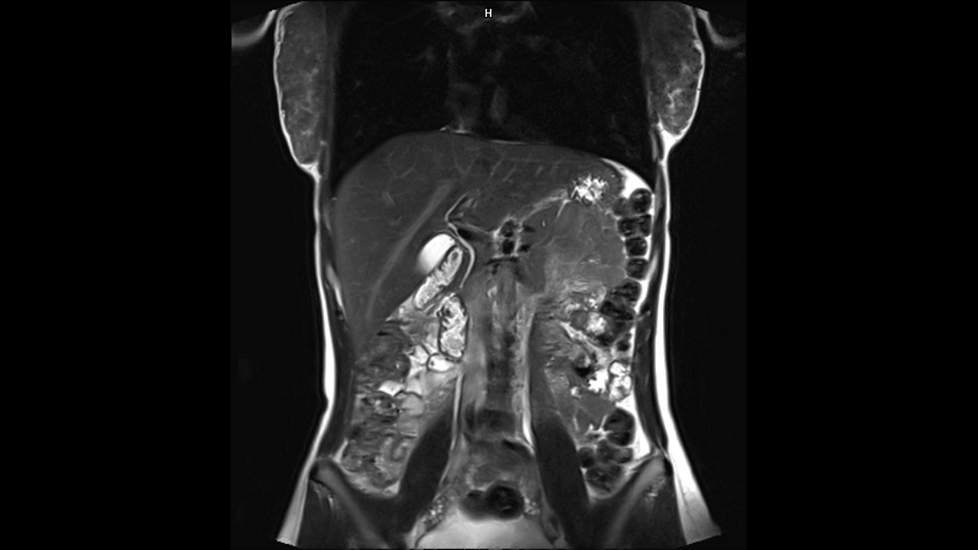

Deep Resolve Gain - All Anatomies

Deep Resolve Gain is an advanced image reconstruction technology with targeted denoising maps. The individual noise maps address local noise variations, resulting in higher SNR. It is applicable to all TSE sequences.

Learn more

Deep Resolve Gain
Coronal
10 sec. breath hold

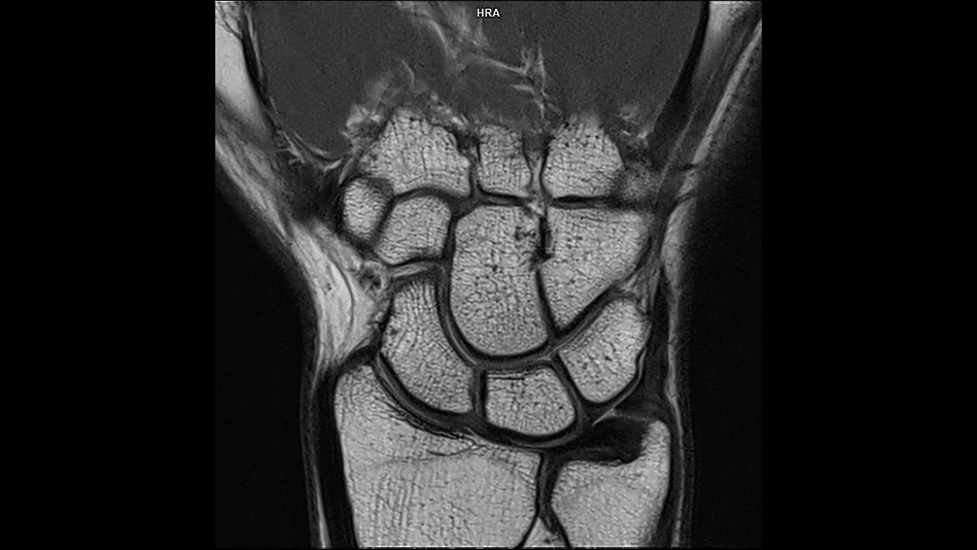

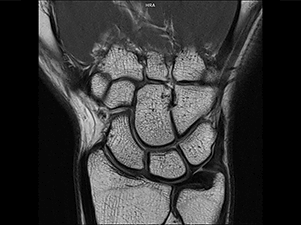

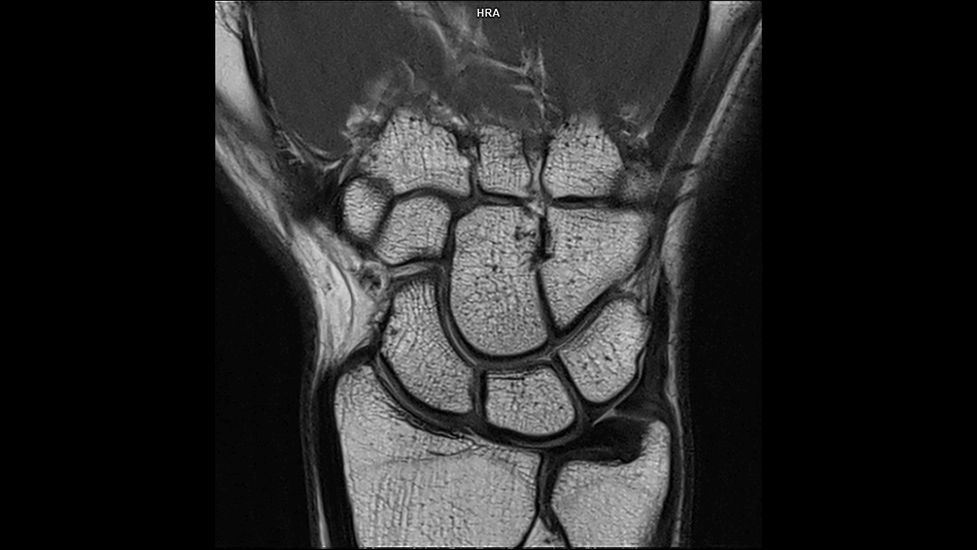

iPAT - All Anatomies

iPAT is a high performance and flexible parallel imaging with integrated autocalibration. iPAT is compatible with all relevant sequence techniques and coil combinations.

Learn more

Coronal T1
iPAT 2
TA: 2:30
2.5 mm slice
100 mm FOV
384 matrix

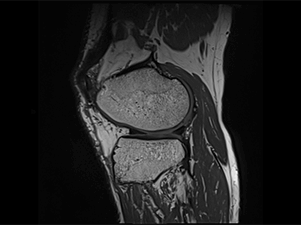

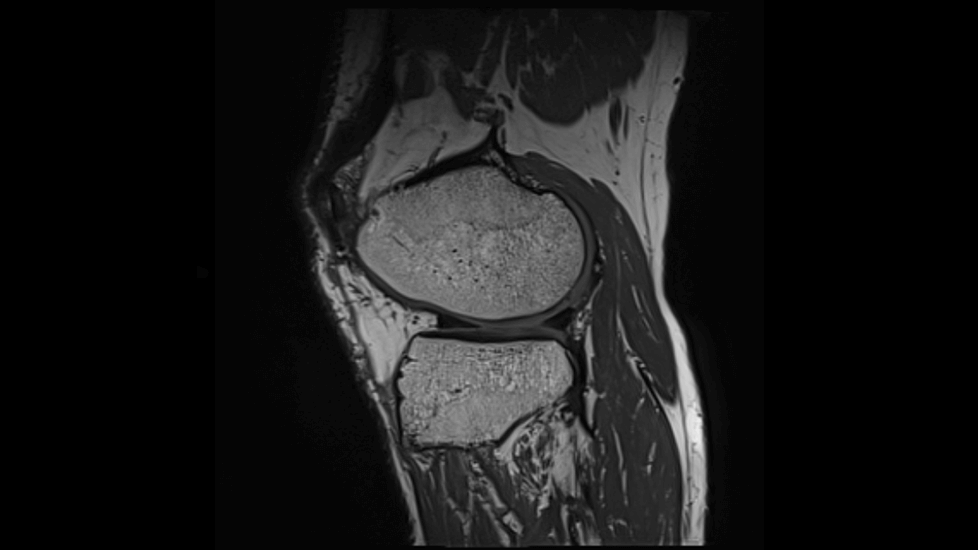

Compressed SENSE SPACE - MSK

Highly accelerated 3D imaging with Compressed Sensing and Iterative Reconstruction. Spatial and temporal resolution can be improved and scan time substantially reduced for musculoskeletal imaging.

Learn more

Sagittal 3D
iPAT 4
TA: 4:00
0.5 mm slice
160 mm FOV
320 matrix

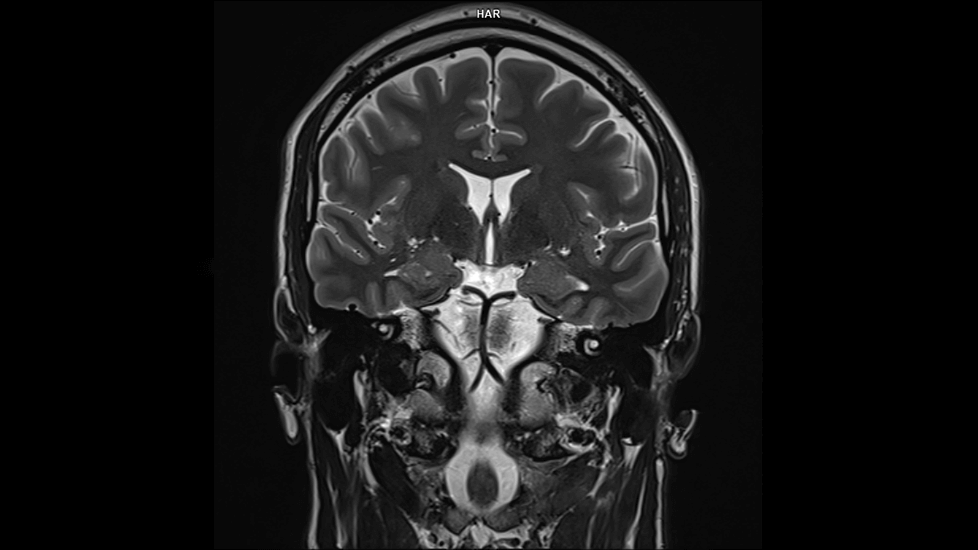

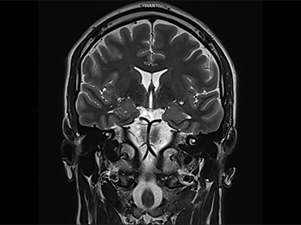

Simultaneous Multi-Slice TSE - Neuro

Simultaneous Multi-Slice significantly reduces imaging times for DWI, BOLD, TSE and TSE DIXON imaging through excitation and readout of multiple slices simultaneously.

Learn more

Coronal T2
SMS 2
TA: 1:09
2.0 mm slice
200 mm FOV

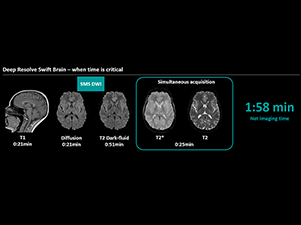

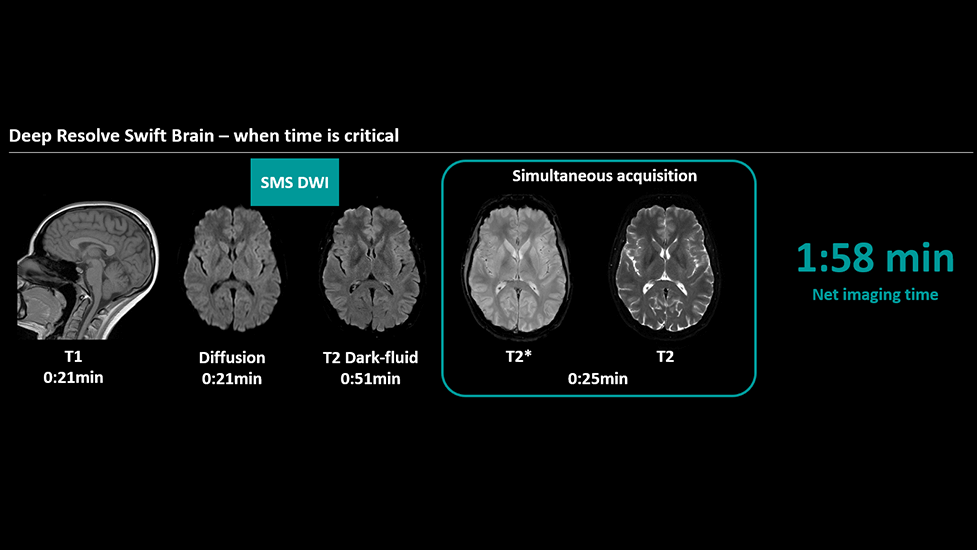

Deep Resolve Swift Brain

Taking advantage of the Deep Resolve AI-powered image reconstruction technology, this innovative multi-shot EPI approach drives increased data acquisition. New static field corrections are implemented to minimize geometric distortions from the EPI imaging.

Learn more

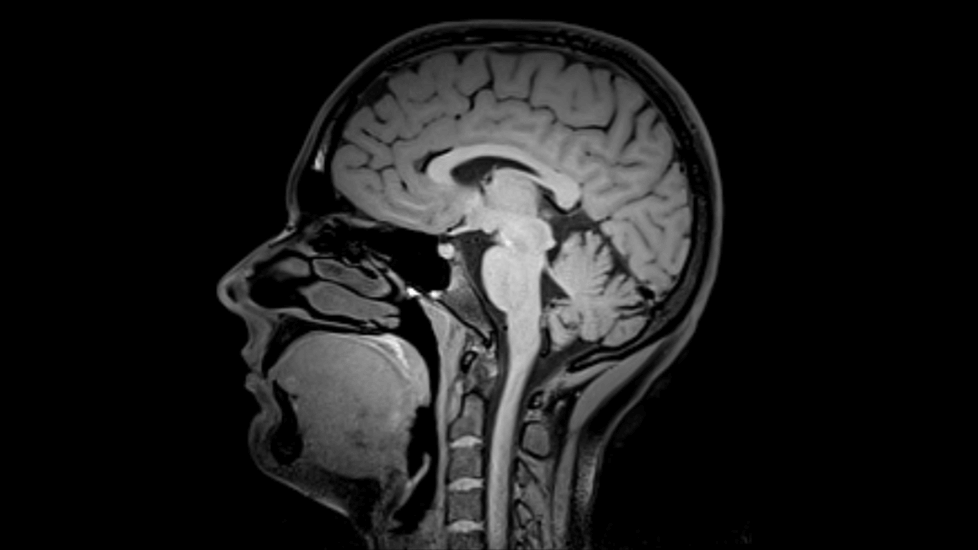

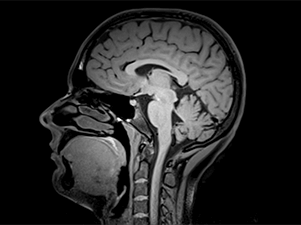

Compressed SENSE SPACE - Neuro

Highly accelerated 3D imaging with Compressed Sensing and Iterative Reconstruction. Spatial and temporal resolution can be improved and scan time substantially reduced for neurological imaging.

Learn more

Sagittal T1
CS 4
TA: 3:04
1.0 mm slice
250 mm FOV

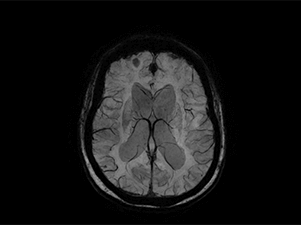

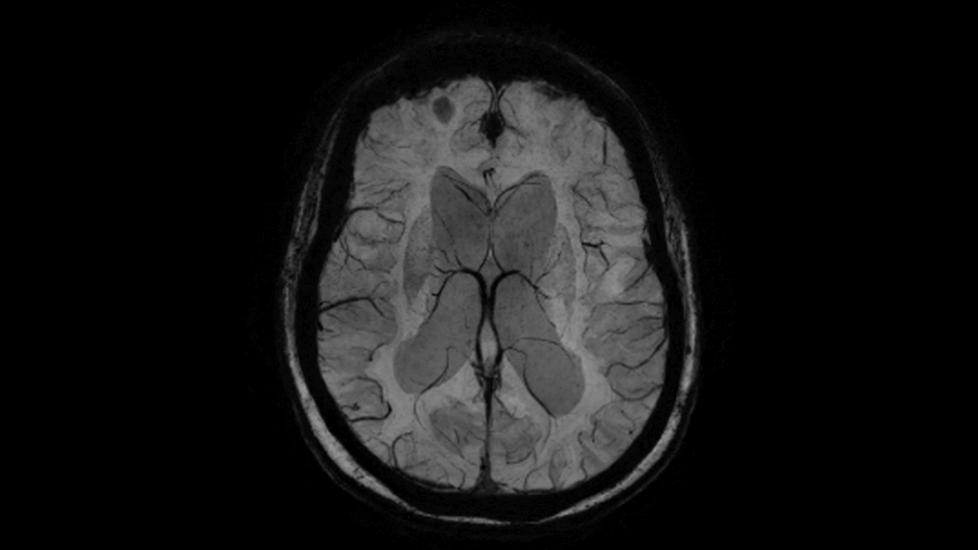

WAVE CAIPIRINHA Susceptibility Weighted Imaging - Neuro

Wave-CAIPI is a new sequence technique that improves head imaging over standard SWI contrast and allows for higher acceleration factors.

Learn more

Axial SWI
iPAT 4
TA: 1:40
2.0 mm slice
230 mm FOV
352 matrix

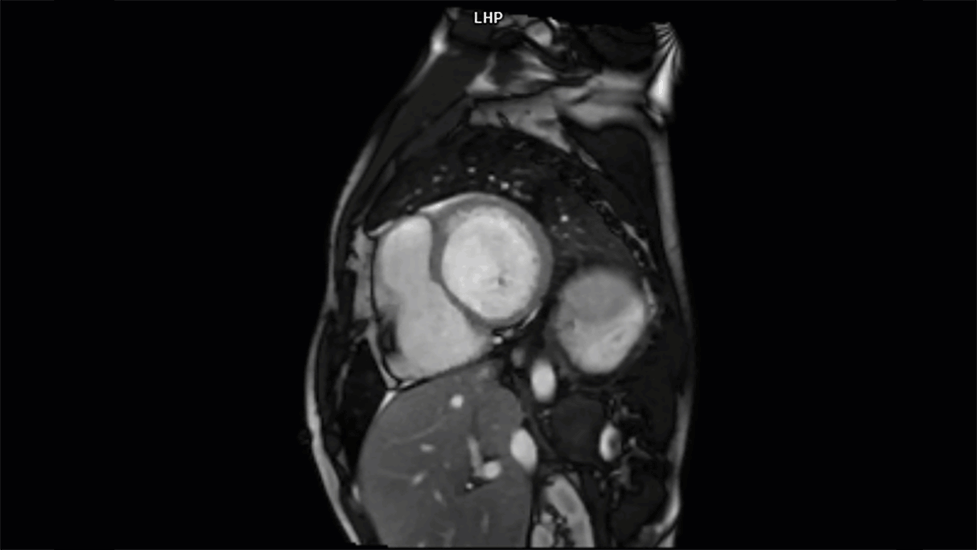

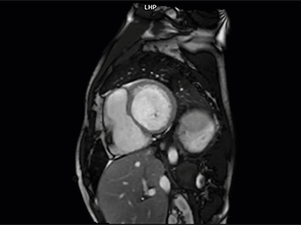

Compressed SENSE Cardiac Cine - Cardiac

Highly accelerated functional Cardiac 2D Cine imaging with Compressed Sensing and Iterative Reconstruction. Real-time Cine or single breath-hold Cine for full heart coverage in patients with limited breath-hold capability or with arrhythmia.

Learn more

1 heartbeat
25 phases
CS 5
5.0 mm slice

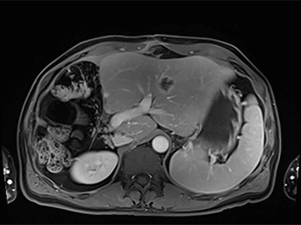

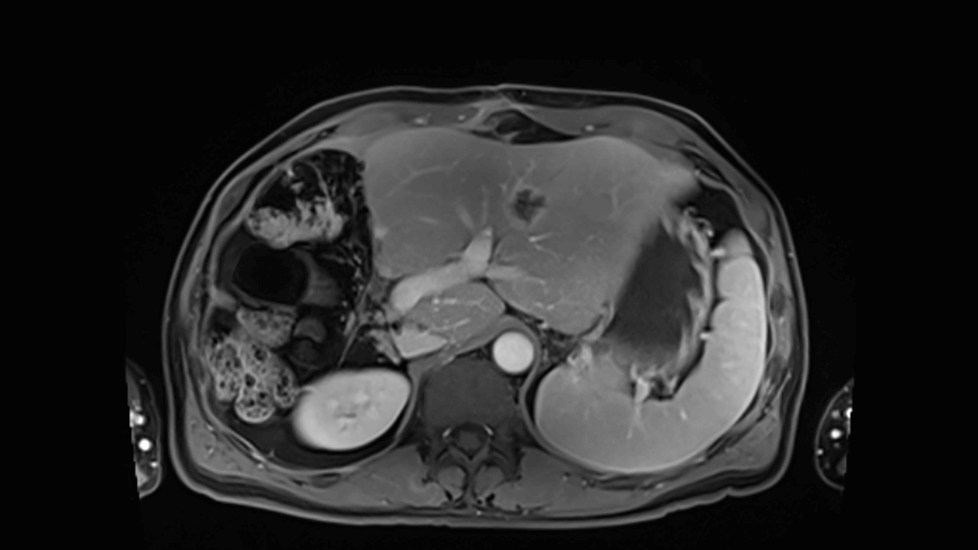

CAIPIRINHA

CAIPIRINHA is a data acquisition technique that significantly reduces breath-holds without affecting image resolution, coverage, or contrast. It can be used for a single short breath-hold.

Learn more

Axial Fat Suppression
13 sec. breath hold
3.0 mm slice
320 mm FOV
320 matrix

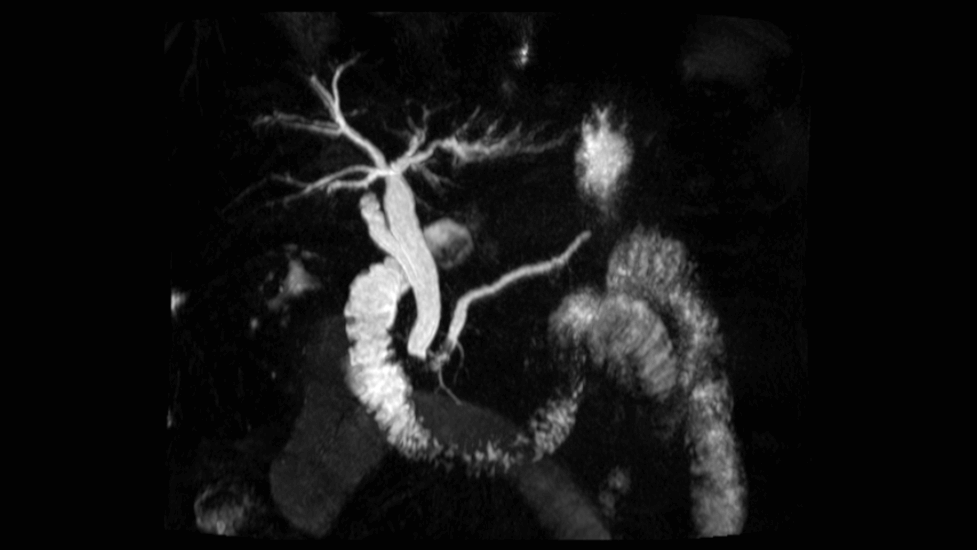

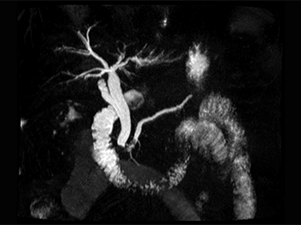

Compressed SENSE SPACE - Body

Highly accelerated 3D imaging with Compressed Sensing and Iterative Reconstruction. Spatial and temporal resolution can be improved and scan time substantially reduced for body imaging.

Learn more

MRCP
CS 4
TA: 0:49
0.5 mm slice
300 mm FOV

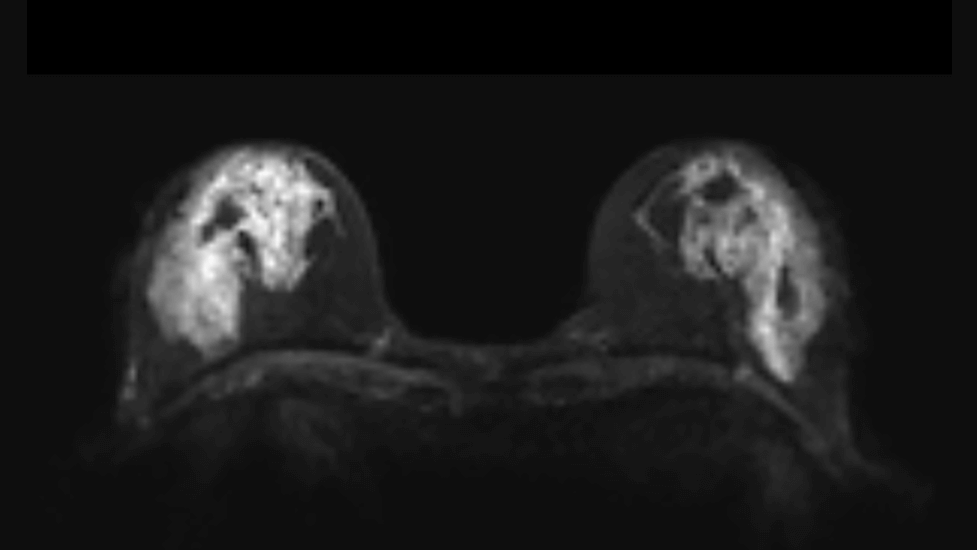

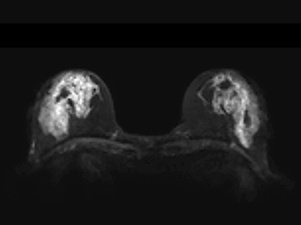

Simultaneous Multi-Slice RESOLVE - Body

RESOLVE delivers high-resolution, low-distortion diffusion-weighted imaging (DWI) for accurate depic­tion of lesions in prostate and breast. Slice acceleration can be used to reduce scan time and/ or achieve higher spatial resolution.

Learn more

Axial Diffusion
SMS 2
TA: 3:00
4.0 mm slice
340 mm FOV

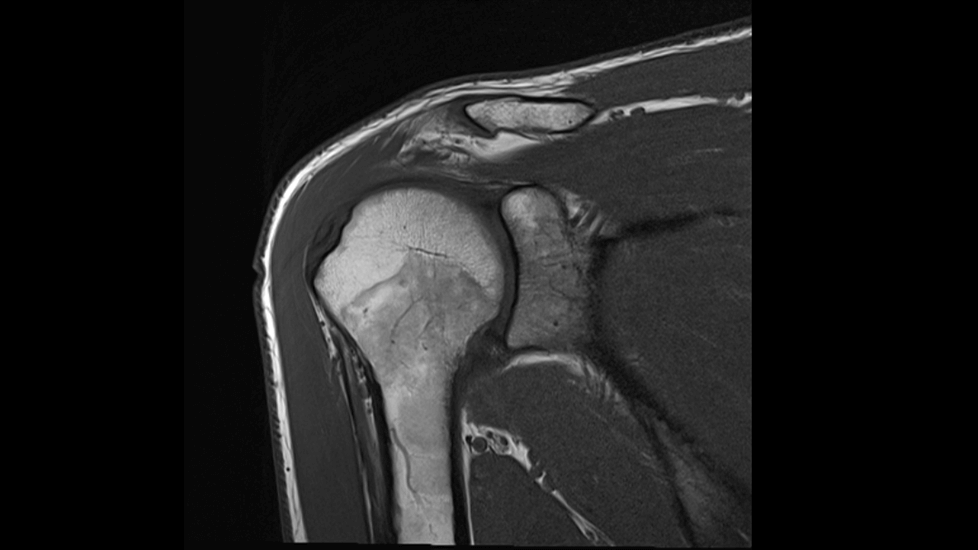

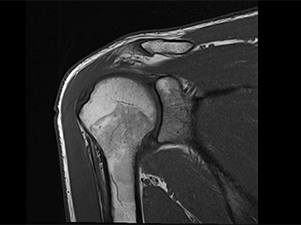

Simultaneous Multi-Slice TSE - MSK

Simultaneous Multi-Slice significantly reduces imaging times for DWI, BOLD, TSE and TSE DIXON imaging through excitation and readout of multiple slices simultaneously.

Learn more

Coronal T1
SMS 2
TA: 1:19
3.0 mm slice
150 mm FOV

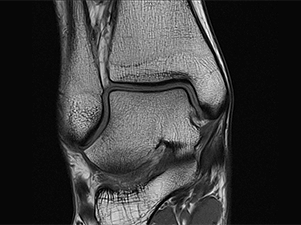

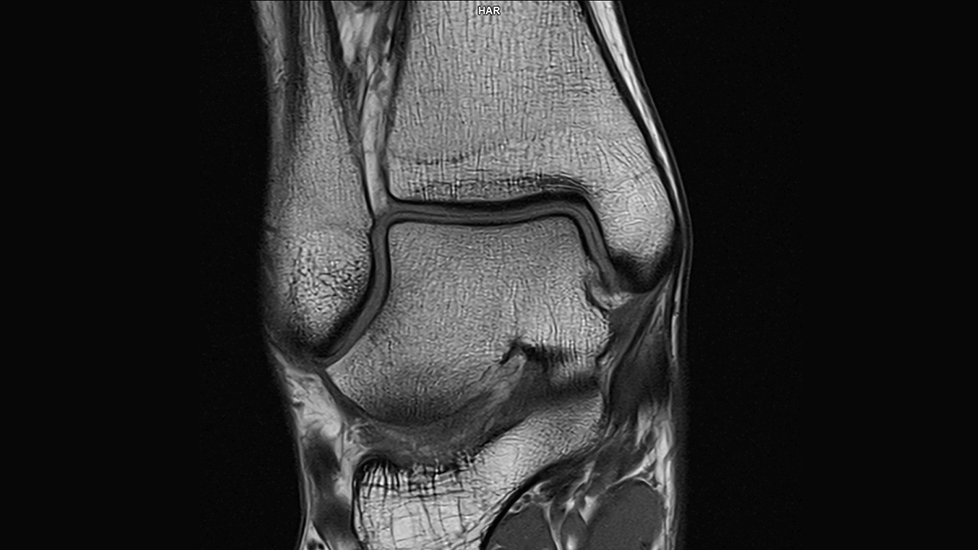

Deep Resolve Boost - All Anatomies

Deep Resolve Boost is an AI-powered image reconstruction technology that can be combined with SMS and Deep Resolve Sharp. The unique combination allows for much higher accelerated scans as well as the ability to increase the image resolution.

Learn moreOpens in a new window.

Coronal T1
SMS 2
TA: 1:00
2.5 mm slice
120 mm FOV
1024 matrix
